Selective laser sintering 3D printing

SLS 3D Printing

A highly precise 3D printing process that cost-effectively produces industrial-strength parts.

Cost-effective | Lead times from 1 day | High-quality

Get A Quote

What is Selective Laser Sintering?

Selective Laser Sintering 3D printing uses a CAD file to build a part layer by layer from nylon-based powder which is fused together with a laser.

SLS 3D printing otherwise known as nylon 3D printing is among the most versatile additive manufacturing technique that enables both low volume production and precision part manufacturing.

Benefits

  • No Support Structures.
  • Repeatability.
  • Suitable for mechanical testing.
  • Can print complex geometries.
  • Can print high-strength parts.

Applications

  • Consumer products.
  • Functional prototypes.
  • Jigs & Fixtures.
  • Automotive & Aerospace parts.
  • Mechanical components.
SLS 3D Printing

Specifications

Dimensions 330 x  280 x  400mm
Layer Thickness 0.1mm
 Clearances Min 0.2mm | Functional Parts 0.5 - 0.6mm
Wall Thickness 0.8mm - 1mm  (varies with material choices)
Tolerances

± 0.3%  (with a lower limit of  ± 0.3mm  )
Engraving

Minimum depth of 1mm
-- Text must have a min. font size of 2mm
Embossed Details

Minimum height of 1mm
Holes

Greater than 1.5mm diameter
Escape Holes

Minimum 3.5mm diameter



SLS Printing

Get SLS 3D Printed Parts

Submit Your CAD files for a quote.

Submit CAD

Materials

If the material you require isn't listed, please contact our sales team.

Nylon PA 650 (Black & White)

SLS 3D Printing Nylon PA 650

A versatile, highly-robust chemical resistant SLS material.

Ideal for prototypes and end-use products. Can be sprayed painted any colour.

Download
Datasheet

Nylon GF 615 GS

SLS Glass Filled 3D Printing

50% Glass filled nylon.

Well suited for automotive engine components or parts that
require complex
geometries.

Download
Datasheet

PA 2210 FR

Flame Retardant SLS Material

Blue Card Certified. FAR 25.853 compliant.

Ideal for manufacturing flame-resistant parts that have high-mechanical properties.

Download
Datasheet

PA 2241 FR

Flame Retardant 3D Printing

Blue card certified.

Ideal for manufacturing flame-resistant parts. FAR 25.853 compliant.

Download
Datasheet

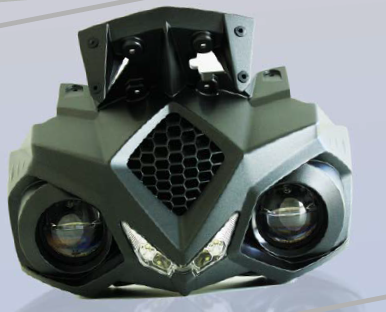

Windform XT

Windform 3D Printing SLS

Excellent mechanical performances.

High stiffness matched to low density & remarkable lightness.

Download
Datasheet

Finishes

  • Loose powder removed.
  • Bead blast.
  • Colour spray painting / colour dye.
  • Vapour smoothing.
  • Shot peening.
  • Dying black.
  • Water resistant sealing.
  • Fully bespoke custom finish.
Selective laser sintering 3D Printing

SLS 3D Printing Quote

Supporting businesses with our SLS 3D printing services for over 20 years.



High quality SLS parts guaranteed
1-6 Day lead times
3+ Materials Available
Excellent Customer Service & CAD Advice Provided
ISO 9001:2015 certified

Submit the form > Receive a quote within 24-48 hours > Order & get your parts

Need an NDA? Download it here & send it to info@ame-3d.co.uk.
