Vacuum Casting

Vacuum casting  is a polymer casting  process that uses silicone  moulds  to create highly accurate  polyurethane parts.

This production technique  creates casting models with  a wide range of finishing choices,  which  are highly detailed. Vacuum casting is a great option for low volume production or it can give you a great idea of what the finished product will look like.

Aesthetic Products

Finish Choices

How  Vacuum Casting  Works

Vacuum casting is a  process whereby an SLA or SLS printed and finished part is used as a master then a silicone  mould  is created from it. Once the mould is created, polyurethane resin is poured into the mould under vacuum to produce the part.

  1. 3D CAD file is reviewed by the AME-3D production team

  2. CAD file is set-up in the  SLA or  SLS  system

  3. The master is completed to the specified  surface finish

  4. A silicone  mould is created from the master pattern
  5. Once cured the silicone  is cured  the mould is opened along a predetermined parting line

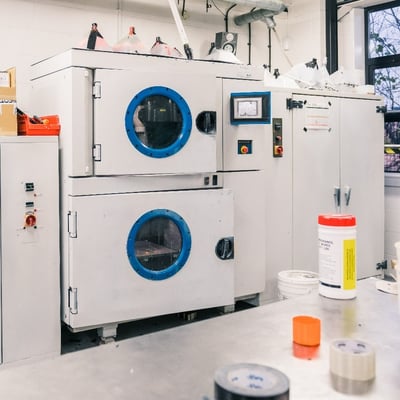

  6. The polyurethane is poured in and the  mould  is cast in the vacuum casting chamber

  7. Any excess material is  skilfully  removed

  8. The vacuum cast product is finalised with the requested finish

Low Volume Production

Easy Repeatability

Applications  and Uses

  • Straight to end product
  • Minimal  viable product for testing
  • Functional  and visual  prototypes  for pre-launch testing
  • Thermal and airflow testing
  • Concept and appearance models  for marketing trade shows and presentations
  • Suitable for  housings, covers,  automotive panels  and electrical  enclosures
  • Ideal for colour matches and transparent elements

 Vacuum Casting  Details

Vacuum casting models are comparable to injection  moulded  parts.

VC capacity comparison

Quantity Up to 20 parts per tool
Tolerances  + / - 0.3% geometry dependent



Wall thickness

Min. 0.5 mm - 1 mm

(Depending on the overall size. The larger the part, the thicker the wall must be)
Letters and logos Width = 2x height min.
Gap between raised and recessed letters  Min. 1.27 mm



Lead times

  • Typical  vacuum casting lead times are 8-10 days; express work available from 3 - 4 days.

If you require a part longer than 650 mm, please speak to our sales team.

If the material you need isn’t listed, we  order material in for customers. Simply discuss your project specifications with our sales team.

AME 0095 All-Round Material

An ABS-like material that's highly versatile. Available in colourless or clear, and pigmentable in eight different colours.

Shore Hardness 82D, 77D, 74D
Tensile Strength 54 MPa
Tensile Modulus 2,521 MPa
Flexural Strength 88.6 MPa
Flexural Modulus 2,195 MPa
Heat Deflection Temp. 72°C
Elongation Break 12%



AME 8891 Flexible Rubber

Available in white and pigmentable in eight different colours.

Shore Hardness 20 - 90A
Tensile Strength 2 - 7 MPa
Elongation Break 270 - 330%



AME 8051 High Temperature Resistant Material

An ABS-like material available in white.

Shore Hardness 77D, 78D, 84D
Tensile Strength 55.9 MPa
Tensile Modulus 2,150 MPa
Flexural Strength 85.0 MPa
Flexural Modulus  1,965 MPa
Heat Deflection Temp. 92°C
Elongation Break 8%



AME 8263 Flame Retardant Material

A white material similar to injection moulding components.

Shore Hardness 80D, 83D
Tensile Strength 68 MPa
Flexural Strength 93 MPa
Flexural Modulus  2,200 MPa
Heat Deflection Temp. 80°C
Elongation Break 15%



Vacuum Casting Material  Finishes

  • Surface can be specified as textured, matt, satin or gloss
  • Clear or frosted
  • Rubber over mould
  • Matt Satin or gloss metallic finish
  • Specialised finishes available upon request
  •
  •

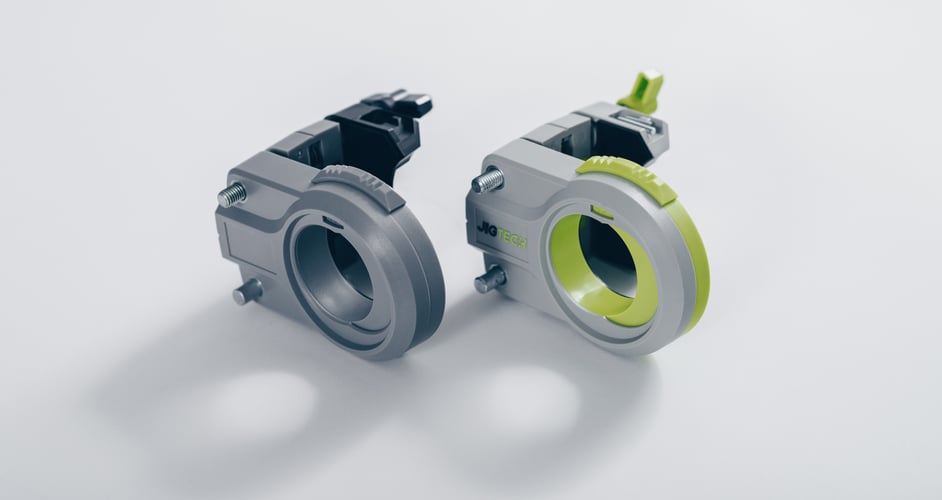

JigTech vacuum cast prototype with final product zoomed in



The vacuum casting process is an accurate production technique that can replicate detailed patterns, complex dimensions, and different textures. This range makes it an ideal choice for both rapid prototyping and low volume production of end-use products or parts.

Benefits



    • Fine detail and accuracy
    • Elastomers have adjustable hardness
    • Resistant to high temperatures
    • Strong optical properties subject to material choice
    • Repeatability
    • Variety of colours. Colours can be matched to samples provided.
    • Cost-efficient alternative to hard tooling
    • Cost-effective for small batches of end-use product runs
