SLS Printing

Selective Laser Sintering (SLS)  is a  powder  based  technique wherein each layer is  accurately fused together by a laser.

It  is a highly precise 3D printing process that cost-effectively produces industrial strength parts, complicated geometry, detailed visual and robust functional prototypes.

Low Volume Production

Versatile

How SLS Production  Works

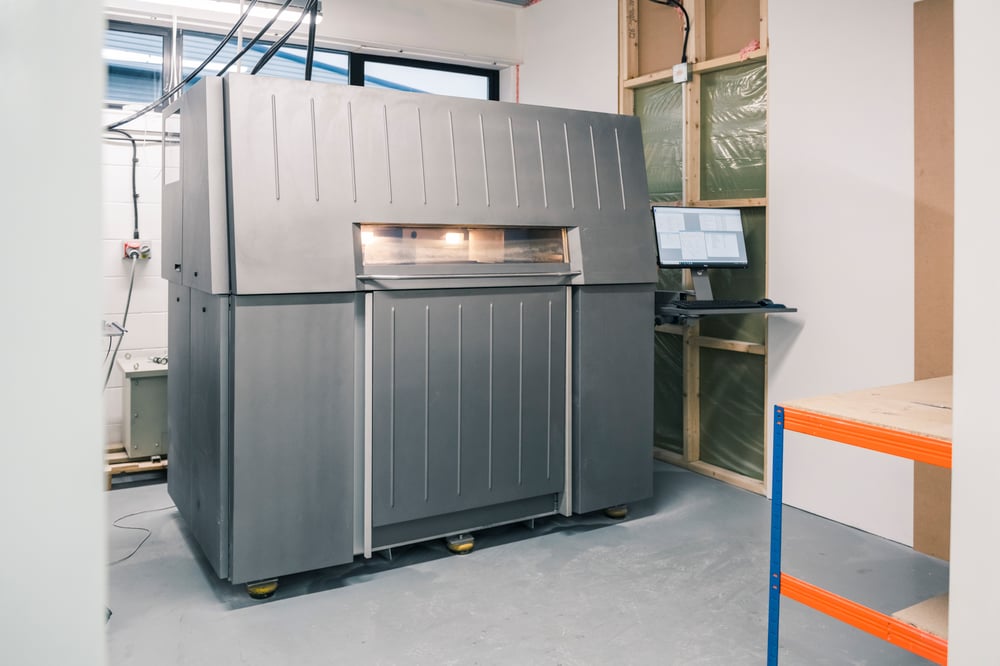

Selective Laser Sintering  (SLS) builds a part layer-by-layer via a laser fusing nylon-based powder together.

  1. 3D CAD file is reviewed by the AME-3D production team
  2. CAD file is set-up in the SLS  system
  3. A laser binds the powder particles together based  on the file specifications  layer by layer until the build is complete.
  4. The loose  powder is removed,  and the part is processed according to the chosen finish

Cost-effective

Robust

SLS Production Application and Uses

  • Functional  and durable  prototypes for  mechanical  testing
  • Complex geometries  and precision parts
  • Cost-efficient production of unique and personalised products
  • Lightweight designs with lattice structures
  • On  demand part manufacturing  that rivals  injection moulded parts
  • Suitable for low volume production
  • Increased  recyclability  compared to alternative 3D printing technique

SLS Printing Details

The SLS printing dimensions are a reference guide. Our team are experienced in splitting designs and seamlessly joining parts together, should you require a build that exceeds the maximum dimensions provided.

SLS Dimensions 400 x 280 x 330mm
SLS Resolutions 0.1mm
Feature size min. 0.8mm
Wall thickness 0.7mm - 2.0mm (varies with material choice)
Tolerances ± 0.3mm  or  ±0.05 mm / mm
Engraving

Minimum depth of 1mm

-- Text must have a min. font size of 2mm

Embossed details Minimum height of 1mm
Hole size Greater than 1.5mm diameter
Escape holes Minimum 3.5mm diameter



Lead Times

  • Typically 1-5 days

Please note, our SLS printing machines run throughout the weekend and we offer delivery all over the UK.

If the material you need isn’t listed, we  order  material in for customers.

AME Nylon PA 650

A white, thermoplastic nylon that can be painted or pigmented in a wide variety of colours.

Shore Hardness Tensile Strength  Tensile Modulus
73D 48 MPa 1,700 MPa
Flexural Strength Flexural Modulus Heat Deflection Temp
48 MPa  1,500 MPa 95 - 180°C
Elongation Break
24%



AME Nylon GF 615 GS

A 50% glass-filled nylon available in a light sand tone.

Shore Hardness Tensile Strength  Tensile Modulus
77D 38 MPa 5,910  MPa
Flexural Strength Flexural Modulus Heat Deflection Temp
37 MPa 3,300 MPa 134 - 179°C
Elongation Break
2%



SLS Finishes

The correct finish improves the overall performance of your SLS printed part or product.

  • Off machine with loose powder removed
  • Bead blast
  • Colour spray painting
  • Clear lacquer
SLS product finish zoomed in



Benefits

 SLS  is  the most  versatile 3D printing technique that bridges the gap  of low volume production  and  precision  part manufacturing. Its main benefits include:

  •  End-use functionality  and materials
  • Durable products suitable for mechanical testing
  • Chemical resistance
  • Repeatability
  • Able to tackle complex designs  due to no
    support structures being required
  • Cost-effectiveness
  • Can be painted or pigmented any colour

Ready to build?
